Pressure reducing valves (PRVs) play a crucial role in maintaining safe and efficient pressure levels in fluid systems. They are used across various industries, including water distribution, HVAC, oil and gas, and manufacturing. However, one often overlooked factor that significantly influences their performance is altitude. Altitude affects both air density and pressure, which can alter how a pressure reducing valve operates.

In this article, we will explore the science behind altitude’s effect on PRVs, the mechanical and operational implications, and the measures needed to ensure proper performance in high-altitude or low-altitude environments.

Understanding the Function of a Pressure Reducing Valve

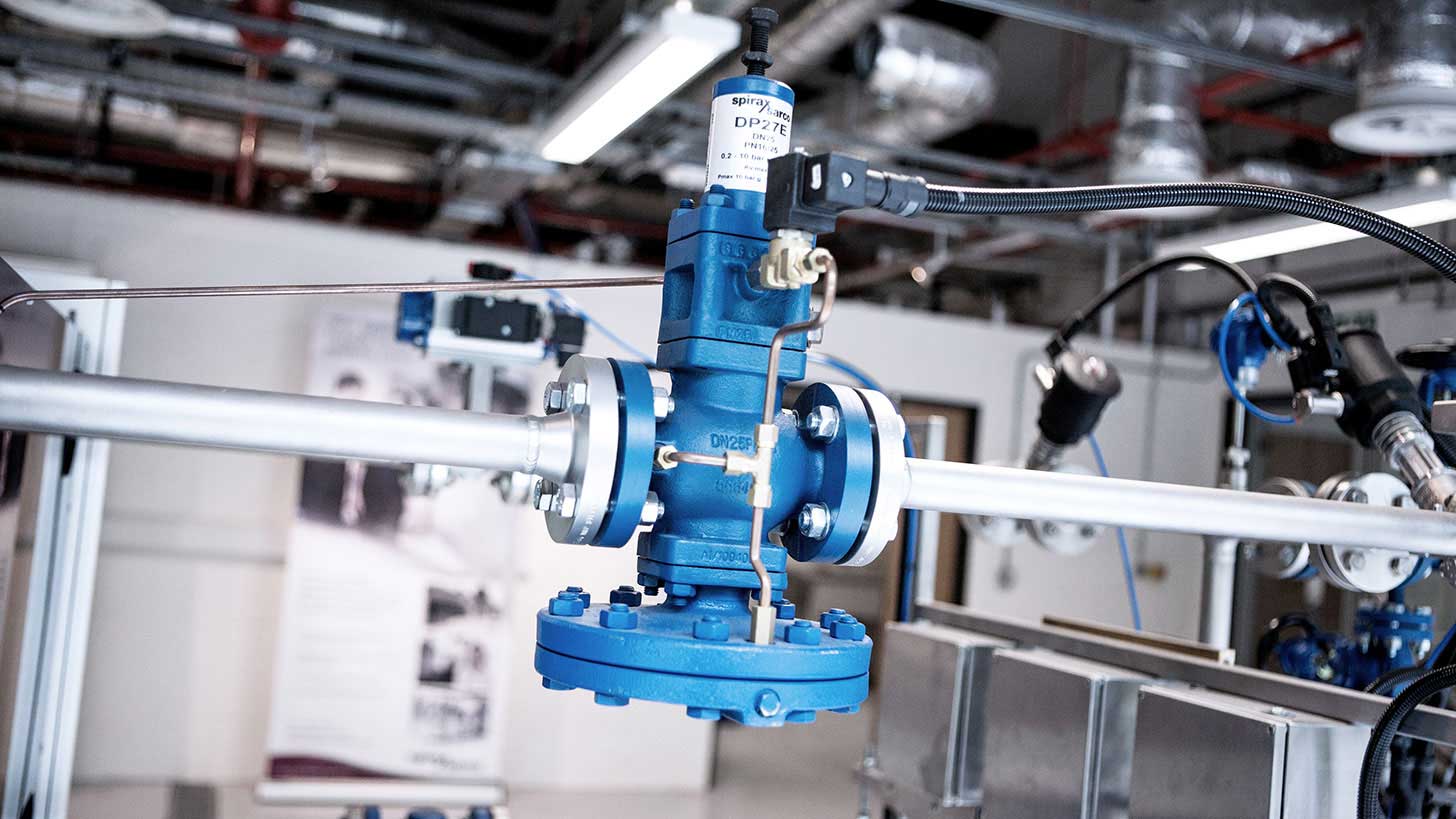

A pressure reducing valve is a type of control valve designed to lower the inlet pressure of a fluid—usually water, air, or gas—to a desired outlet pressure. It automatically maintains a constant downstream pressure regardless of variations in upstream pressure or flow demand.

The valve works using a balance of forces between a spring, diaphragm, and internal pressure chambers. When the downstream pressure rises above the set point, the valve throttles or closes slightly to reduce flow. When the downstream pressure drops, it opens to allow more flow. This self-regulating mechanism ensures consistent pressure to downstream equipment and prevents system damage from excessive pressure.

The Relationship Between Altitude and Atmospheric Pressure

Altitude has a direct relationship with atmospheric pressure. As altitude increases, the atmospheric pressure decreases because there is less air mass above exerting force. At sea level, the standard atmospheric pressure is approximately 101.3 kPa (14.7 psi). For every 1,000 meters of elevation gain, atmospheric pressure drops by roughly 11 to 12 kPa.

This decrease in air pressure at higher altitudes impacts the behavior of gases and fluids within mechanical systems. Liquids experience changes in vapor pressure and density, while gases expand due to reduced external pressure. These variations influence how PRVs perform in maintaining downstream pressure stability.

NOTE:-  For years, the Pressure Reducing Valve had been installed to regulate fluid flow and enhance process safety. It ensured smooth operations in critical applications. Choose Sensor Tech today to discover premium-grade valves that were precision-engineered for reliability, efficiency, and long-term stability in all industrial environments.

How Altitude Affects the Inlet Pressure of a System

At higher altitudes, the available pressure at the valve’s inlet may already be lower due to the reduced atmospheric pressure and the effects on pumping systems. Water supply networks in mountainous regions often operate at lower inlet pressures compared to systems at sea level.

When the inlet pressure is reduced, the pressure differential across the valve (the difference between inlet and outlet pressure) also decreases. Since PRVs rely on this differential to regulate downstream flow effectively, insufficient differential pressure can lead to improper regulation, unstable operation, or even valve chatter.

Impact on Valve Calibration and Set Pressure

Pressure reducing valves are usually calibrated at or near sea-level conditions during manufacturing and testing. When installed at higher altitudes, their calibration may no longer correspond accurately to the actual working conditions.

For example, a PRV set to deliver 3 bar downstream pressure at sea level might not produce the same outlet pressure when installed at 2,000 meters elevation. The decreased atmospheric pressure means the valve’s spring and diaphragm experience less opposing force from the ambient environment, which can lead to higher actual outlet pressure than desired.

To compensate, technicians often need to re-calibrate the set pressure after installation, adjusting it to reflect the local atmospheric pressure. Without recalibration, systems may experience over-pressurization or under-delivery, depending on the direction of the deviation.

Influence of Air Density on Pneumatic and Gas PRVs

In pneumatic systems or gas networks, altitude influences valve performance more dramatically than in liquid systems. Air and gases are compressible fluids, meaning their volume changes significantly with pressure and temperature.

At high altitudes, where air density is lower, the mass flow rate through a valve decreases for a given volumetric flow. As a result, pressure reducing valves designed for pneumatic applications may struggle to maintain consistent downstream pressure, as the flow characteristics shift with altitude.

Engineers often need to recalculate flow coefficients (Cv) and adjust valve sizing when designing systems for high-altitude installations to ensure that sufficient mass flow is achieved despite reduced air density.

Effects on Diaphragm and Spring Mechanisms

The diaphragm and spring assembly is the heart of a pressure reducing valve. It senses downstream pressure and adjusts the valve opening accordingly. Both components are affected by altitude due to changes in ambient pressure acting on the external side of the diaphragm.

At sea level, atmospheric pressure provides a stable reference point. However, at higher altitudes, reduced ambient pressure means the pressure differential across the diaphragm changes even if downstream pressure remains constant. This imbalance can cause:

• Overshooting of the desired outlet pressure

• Reduced response sensitivity

• Minor instability in steady-state conditions

Springs may also behave differently under varying pressure conditions, particularly if the valve materials expand or contract due to temperature fluctuations common in elevated terrains.

Impact on Water Systems at High Altitudes

In water distribution systems located in high-altitude cities or mountainous regions, engineers frequently face challenges in maintaining consistent downstream pressure due to both lower inlet pressure and variable demand.

For instance, municipal water networks that rely on gravity feed experience reduced available head pressure as elevation increases. PRVs in these systems must be carefully selected to operate within narrower pressure differentials. Failure to do so can result in poor pressure control, increased leakage, and inconsistent service delivery to end users.

Moreover, the boiling point of water decreases with altitude, increasing the risk of cavitation—a condition where vapor bubbles form and collapse within the valve, leading to noise, vibration, and material erosion. Selecting PRVs with anti-cavitation design features is essential for high-altitude water applications.

Thermal Variations and Their Secondary Effects

High-altitude regions often experience greater temperature fluctuations between day and night. Temperature affects fluid viscosity and density, which in turn influences valve performance.

For example, colder temperatures can make fluids more viscous, reducing flow capacity and slowing valve response. Conversely, warmer temperatures can thin fluids, causing the valve to respond too quickly. Engineers must therefore consider both temperature and altitude together during valve selection and setup to maintain stable operation throughout seasonal variations.

Considerations for PRV Material Selection at Different Altitudes

Material selection plays an essential role in ensuring that pressure reducing valves function effectively under altitude-related stresses. High-altitude environments often expose equipment to lower temperatures, higher UV radiation, and potential icing.

Valves made from stainless steel or brass typically offer better resistance to temperature swings and corrosion compared to standard cast iron models. Elastomeric components like diaphragms and seals should be chosen based on their ability to withstand both temperature variation and reduced ambient pressure.

In some cases, manufacturers provide altitude-rated PRV models that include reinforced diaphragms and calibrated springs designed for specific altitude ranges.

Methods for Correcting Altitude Effects on PRVs

To ensure accurate pressure control across different altitudes, engineers can apply several corrective measures during design, installation, and maintenance stages.

1. Recalibrate the Valve Setpoint: Adjust the outlet pressure setting according to the local atmospheric pressure using manufacturer guidelines or field instruments.

2. Re-size the Valve: Choose a valve with an appropriate flow coefficient (Cv) based on the adjusted air density or water head pressure.

3. Use Pressure Gauges Compensated for Altitude: Instruments that display pressure relative to absolute (not gauge) conditions can reduce measurement errors.

4. Install Anti-Cavitation Trim: This helps protect the valve from damage caused by vapor bubble collapse in high-altitude water systems.

5. Routine Maintenance: Periodic inspection and recalibration ensure consistent performance as system conditions or environmental parameters change over time.

Case Example: PRV Operation in Mountainous Regions

A practical example can be found in the design of water supply systems in the Himalayan regions or the Andes. Cities located above 2,500 meters elevation face challenges in stabilizing water pressure due to the lower atmospheric pressure and reduced gravitational head.

Municipal engineers often install pressure reducing stations at various levels of elevation to distribute water evenly. Each PRV must be recalibrated according to its installation height to maintain uniform pressure delivery throughout the network. Without such calibration, downstream users at lower levels could experience excessive pressure, leading to leaks and premature pipeline failure.

Altitude Considerations in Industrial and Aerospace Applications

In industrial pneumatic systems or aerospace ground facilities located at high elevations, maintaining consistent gas pressure is vital for safety and performance. Air compressors at altitude must work harder to achieve the same output pressure as at sea level, which directly affects the inlet conditions for downstream PRVs.

In such cases, engineers use absolute pressure references and pressure transducers instead of standard gauge references to eliminate errors introduced by ambient pressure changes. Similarly, valves are often equipped with pilot controls that can be tuned for altitude-specific performance, ensuring that regulated pressure remains stable despite environmental variations.

Designing PRV Systems for Altitude Adaptability

Modern engineering design increasingly incorporates altitude compensation into PRV systems. This involves simulation and modeling tools that account for variables such as atmospheric pressure, fluid properties, and flow resistance at different elevations.

Designers may also implement multi-stage pressure reduction in extreme altitude conditions. Instead of one large pressure drop through a single valve, the pressure is reduced in smaller steps through multiple valves or stages, minimizing cavitation and improving control accuracy.

Smart PRVs equipped with digital controllers and sensors can automatically adapt to altitude-related fluctuations by adjusting setpoints in real time. Such systems are becoming more common in critical infrastructures like hydroelectric power plants and remote industrial facilities.

Conclusion

Altitude plays a vital yet often underestimated role in determining the performance of pressure reducing valves. From atmospheric pressure changes and air density variations to thermal effects and cavitation risks, the impact is multifaceted.

High-altitude installations demand careful consideration during valve selection, calibration, and maintenance. Proper adjustment of set pressure, material choice, and periodic recalibration can mitigate altitude-related issues and extend the valve’s service life.

By understanding how altitude affects PRV operation, engineers and maintenance teams can ensure reliable pressure control, optimize system efficiency, and prevent costly failures in both industrial and municipal applications. In essence, altitude awareness is not just an environmental concern—it is an engineering necessity for maintaining pressure stability in any setting.
